Lightning Arresters Reliable Surge Protection by True Power

Grounded in Safety, Powered by Reliability

Protect your people, property, and power systems with True Power’s advanced Lightning Arresters, designed for maximum safety and uninterrupted performance. Our solutions ensure that lightning-induced surges are safely discharged to the ground, preventing damage to electrical equipment, infrastructure, and buildings.

Send us your requirement !

ESE Lightning Arresters

Specification	Details
Type	Early Streamer Emission arrester with ion generator
Protection Radius	~35 m to 107 m
Installation Height	≥2 m above highest point of structure
Enclosure Material	Porcelain housing
Maintenance	Maintenance-free
Earthing Connection	Copper/GI strip to chemical earthing pit

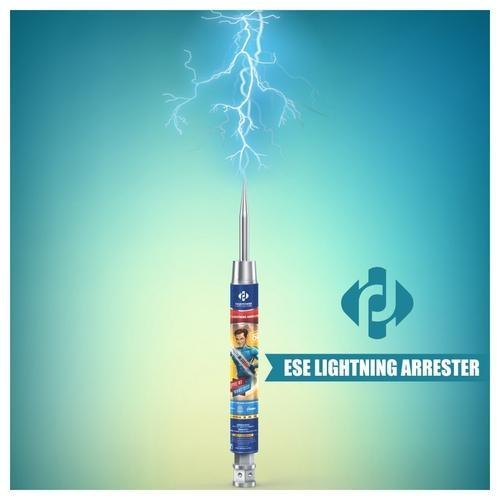

ESE Lightning Arresters (Based On Ion Generator)

ESE Lightning Arresters are Early Streamer Lightning Arresters with an inbuilt Ion generator. These Arresters provide protection over a wider area in comparison to Conventional lightning arresters. A single ESE Lightning Arrester easily replaces about 10 to 20 conventional lightning arresters depending upon the height of the structure and the geographical surroundings.

These arresters are installed at a minimum height of 2 meters from the highest point of the structure.

Our ESE Lightning Arresters are maintenance free and provide reliable protection over a much wider area in comparison to the other brands of ESE lightning arresters available in the market. These arresters are environmentally friendly and reliably work for years even in the most harsh, corrosive, acidic or coastal environments.

The Ion generator inside these arresters starts emitting positive ions, the moment it senses a storm or lightning in the nearby surroundings. These positive ions in the form a stream of positive ions starts rising towards the clouds to intercept the lightning occurring in the nearby vicinity. Once they encounter any lightning strike or current, they immediately ground it to the earth via an earthing strip connected between the ESE arrester and the Chemical earthing (installed in the ground), and protect the entire structure and all other equipment and lives coming within its protection envelope.

Conventional Lightning Arrester

Brand	True Power Limited
Material	Copper, Copper Bonded
Technology	Conventional Type

Diameter	Length
16mm (Solid Rod)	1 mtr
16mm (Solid Rod)	2 mtr
25mm (Hallow Pipe)	1 Mtr
25mm (Hallow Pipe)	2 Mtr

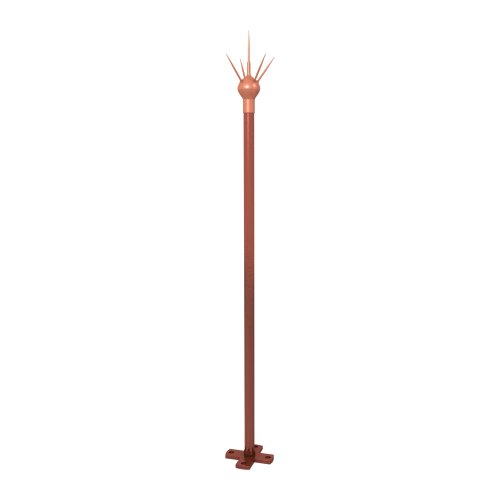

Copper Lightning Arrester

True Power ‘Copper Lightning Arresters’ are designed to flawlessly work throughout their entire service life without any maintenance. These arresters are manufactured at our own state-of-art manufacturing plant with high conductivity copper under supervision of highly qualified engineers.

These Lightning arresters are usually recommended for small areas with fewer Lightning strikes like small homes, offices, warehouses and other low height structures. These are less reliable in comparison with advanced ‘Early streamer Lightning Arresters’ and also protect less surrounding area in their comparison.

One Copper Lightning Arrester safely protects a diameter area of up to 10 meters in height. These arresters are installed on the roof top to intercept any lightning before it strikes the structure. They should be installed in such a manner to let them be at least 2 meter higher than the highest point of the structure. They provide protection over the structure in the form of a cone with its ground radius approximately equal to the height of lightning arrester installed above the ground.
